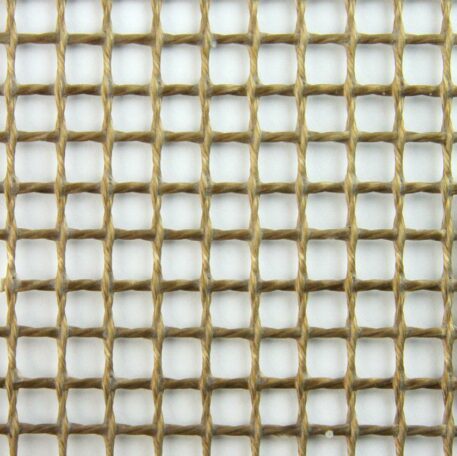

PTFE Coated Kevlar Mesh – KG-155-NA is a 4mm square aperture PTFE coated mesh. Manufactured using aramid yarn in its warp and fibreglass yarn in its weft. This material offers excellent resistance to high temperatures and is widely used for drying fabrics in a in a Relax dryer where light moisture is present.
This heavier duty mesh is suited to conveyor belt applications where a strong belt is required International Shipping Available
| PTFE Coated Kevlar Mesh – Applications |
|---|
| PTFE coated mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry. Other applications range from the drying of cereals, non woven’s, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels. |
| Features & Benefits of PTFE Coated Kevlar Mesh |
|---|
| PTFE open mesh conveyor belting is light weight and cost effective therefore is easy to handle and less expensive than wire alternatives that can be difficult to replace. |
| Often supplied with a metallic clipper type fastener these style of belts can easily be removed and replaced therefore minimising downtime and saving money. |
| Material Properties | ||
|---|---|---|
| • High temperature resistant – up to 260°C | • Excellent release properties | • Exceptional chemical resistance |
| Available in widths up to 3200mm, manufactured in various thicknesses and weights. If your requirements are not available to purchase online please contact our sales team on +44 (0)1422 366386 |
| Specification | |||
|---|---|---|---|
| • Reference: | KG-155-NA (4×4) | • Colours: | Brown |
| • Standard width: | 3200mm | • Tensile strength: | 5000 N/5cm |
| • Thickness: | 1.252mm | • Temperature resistance: | 260°C |
| • Weight: | 575g/m2 | ||
| Supplied by the metre | 1000mm wide, 2750mm wide, 3200mm wide |
|---|
